AWL's cGMP C-CORE HEATED TRANSFER LINE TECHNOLOGIES
LABORATORY HEATED TRANSFER LINES
heating and cooling

Prevent unwanted crystallisation in a process line. Repeatable accurate results by preventing crystallisation in process tubes by maintaining

precise temperatures of a liquid or gas.

These electric heated transfer lines come complete with a controller.

Accuarate spectral analysis by maintaining the  quality of spectra of a gas, compound or liquid. These electric heated transfer lines come complete with a controller

heating
ELECTRIC HEATED TRANSFER LINES (to 150°c)

These electric heated transfer lines come complete with a controller.

heating
ELECTRIC HEATED LINK TRANSFER LINE SYSTEMS (to 150°c)

These electric heated transfer link line kits allow you to create a complete circulatory system between any type of vessel or equipment. These kits comprise of one controller and two heated transfer lines

heating
 C-Core Heated Transfer Line (heated hose, heated tape)
EHTL 150 deg rated connector only image
C-Core heated transfer line
ELECTRIC HEATED TRANSFER LINES (to 200°c)

These electric heated transfer lines come complete with a controller.

heating
C-Core Heated Transfer LIne with patented carbon core technology (heated hoe, heated tape)
LIQUID TRANSFER LINES (to 90°c)
heating and cooling

Repeatable accurate results by preventing crystallisation in a process tube by maintaining precise temperatures of a liquid or gas. These easy to use jacketed lines are heated and cooled from your own source.

Liquid heated transfer line
Liquid heted transfer line removable core
CUSTOM LINES
We also make custom transfer lines and look forward to hearing from you to discuss your requirements

Why are temperature controlled transfer lines used?

Temperature controlled transfer lines provide a safe and reliable way of transporting temperature critical liquids or gases from source to destination without temperature loss, ensuring product quality, stability & optimum parameters for spectral analysis or application. They can also prevent crystallisation in process transfer tubes.

What's unique about AWLs Electric Heated Transfer Lines?

AWL use our own patented C-Core woven carbon fibre technology which helps eliminate hot spots



Safe to the touch. Our transfer lines can deliver high temperatures however their super insulated inner and outer silicon, glass fibre layers and PA mesh outer sleeve  ensure they are safe to work with without specialist clothing



Options to have removable cores



NEW! Link Lines available, (typical use across a pump creating a complete circulatory system)

Capable of controlled clean air/gas delivery

These highly flexible lines can be easily manipulated in and around complex spaces and equipment

SAFE - Low voltage DC 12 volts to 24 volts



Choice of PTFE, FEP & PFA Fluoropolymer process tubes to 200°c



Woven Carbon fibre heating technology usd in C-Core Heated Transfer Lines

Woven Carbon Fibre Core Patented Technology

 Inside view of a C-Core Heated Transfer Line

Unlike conventional wire wound heating methods, AWL have developed carbon fibre C-Core technology for their Heated Transfer Lines. This results in reliable, uniform heat distribution without hotspots whilst providing the ability to efficiently a desired fluid or gas temperature.  The low voltage and composite electrical and thermal insulation layers make them safe to use across a wide range of industries.

ELECTRIC
Heated
Transfer
Line
Product Details

Maintains the temperature of a gas or liquid within a transfer line from  ambient  to 200°C

Ideal for preventing crystallisation from occurring in a transfer line

Plug and play  - no tools required

Can be used in conjunction with a temperature controller

(HTC 75  HTC 150)

Available in 1m, 2m, 3m

and custom lengths

C-Core Heated Transfer Line
BROCHURE
Controller for Heated Transfer
Lines
Product Details

Precise control for the Electric Heated Transfer Line to 200°c

Variable setpoints

Heated Sample  Line CONTROLLER
INSTRUCTIONS
Agricultural
Aerospace
Environmental

Controller for heated transfer lines.

  • These are used in conjunction with electric heated transfer lines and offer precise control to deliver fluids at specific defined temperatures.

  • Capable of controlling two independent lines at one temperature set point (typical applications include controlling the fluid path temperature even across a pump)

  • Small compact unit

Ideal where precision and safety matter in the delivery of hazardous, volatile and sensitive liquids or gases to maintain product integrity.

Industrial
1306 Liquid Heated Transfer Line Brochur
Fluid
Heated
 Transfer
Line
Product Details

Maintains the temperature of a gas or liquid within a transfer line from  ambient  to 90°c (water)

via a heating or cooling source

Connects in series or parallel

Ideal for preventing crystallisation from occurring in a transfer line

Plug and play no tools required

Available in 1m, 2m, 3m

and custom lengths

BROCHURE
Automotive
KEY FEATURES
  • Capable of transferring gases and fluids such as water, oils and adhesives
  • Cool or maintain a fluid temperature

  • Ideal for preventing crystallisation occurring in transfer lines

  • Suitable for any standard process tube

  • Flexible construction allows line to be manipulated into difficult spaces

  • Choice of PTFE, FEP & PFA fluoropolymer process tubes

  • From -50°c to +90°c

  • Tube in Tube - no joints in process piping work

  • Easy to connect to your existing heating or chiller. No tools required.

  • Co-current and counter-current flow

  • Connects in series or in parallel

General point A to B

C-Core Heated Transfer Line and Link Line example of typical use between a jacketed vessel and a reactor

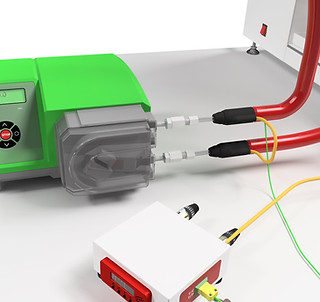

Series connection across a pump

C-Core Heated Transfer Line Series Connection with a Vessel Jacket inlet or outlet

Series connection with a vessel jacket inlet or outlet

EXAMPLES OF SET UP
